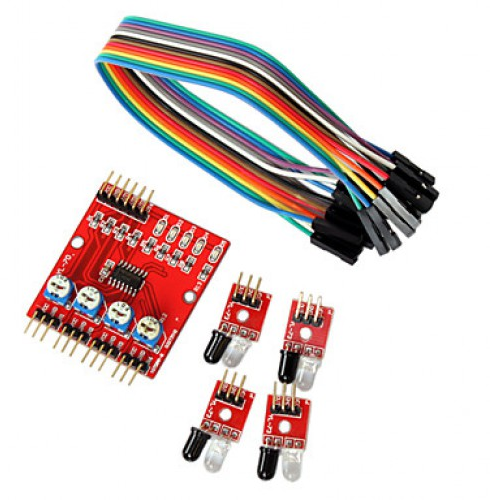

4 Channel Infrared Receiver Tracking Sensor Module IR Line Patrol Geekcreit for Arduino - products that work with official Arduino boards
Feature:
Smart car or a robot hunt (including black and white lines), walking path along the black line, also known as tracking.
Smart car to avoid obstacle and cliff, anti-drop.
Can be applied to other automation applications of photoelectric.
Specification:
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: -10°C to +50°C
Mounting aperture: M3 screw
Detection range: 1mm to 60cm adjustable, the closer the performance more stable, white reflects the farthest distance.
Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
| Algemene informatie over dit onderdeelAlgemene informatie test |
|---|
| Prijs indicatie | € 2,55 | | Pinout tekst | Connections | | Menu groep | Sensors | | Laatste verandering | 2022-10-24 |
